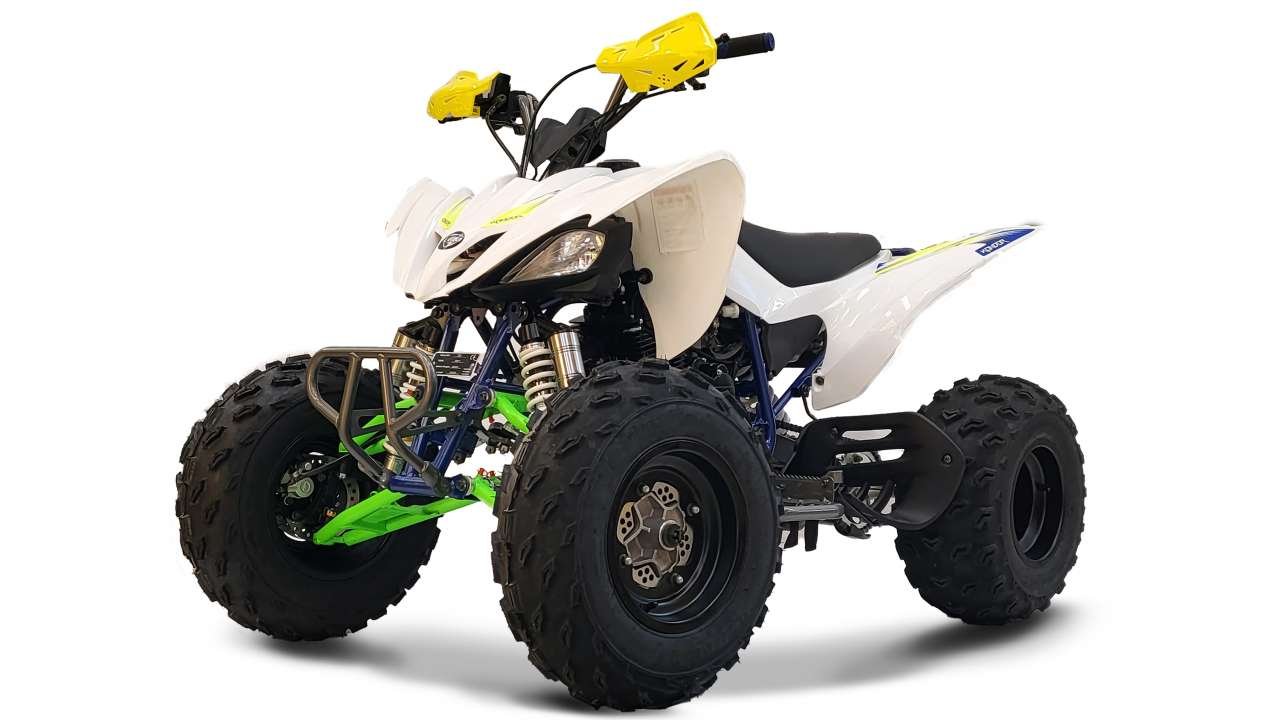

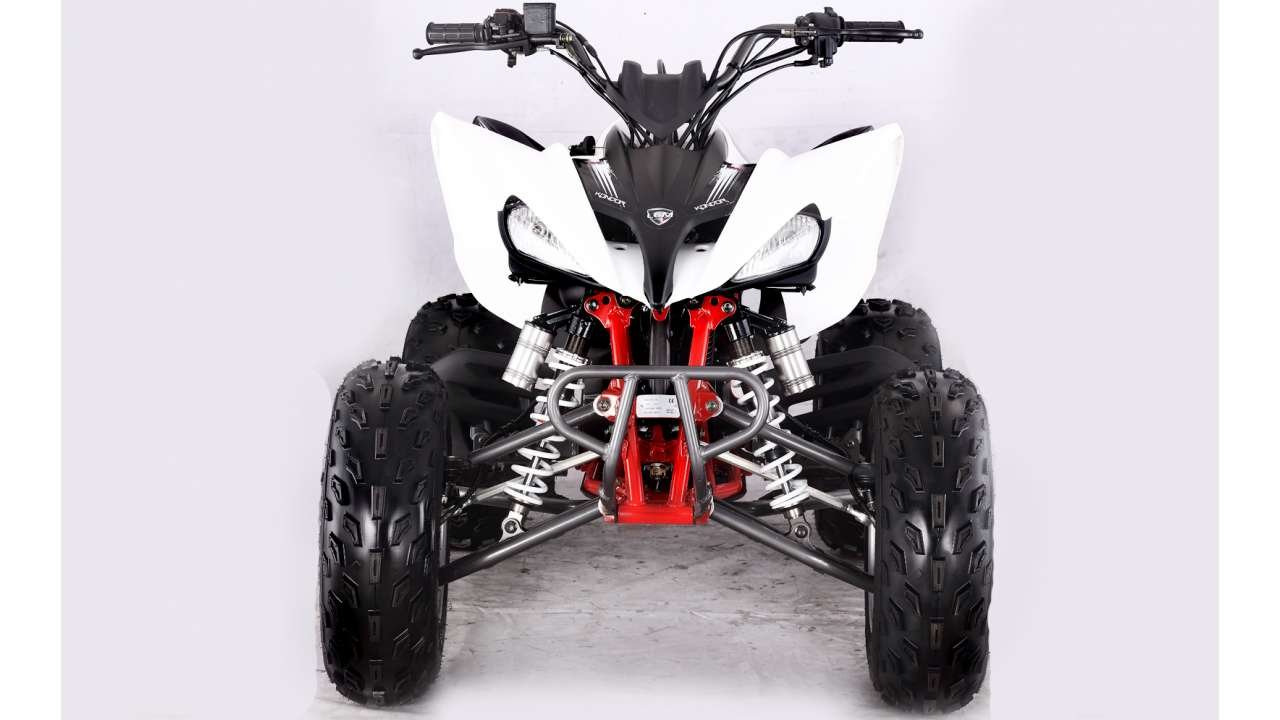

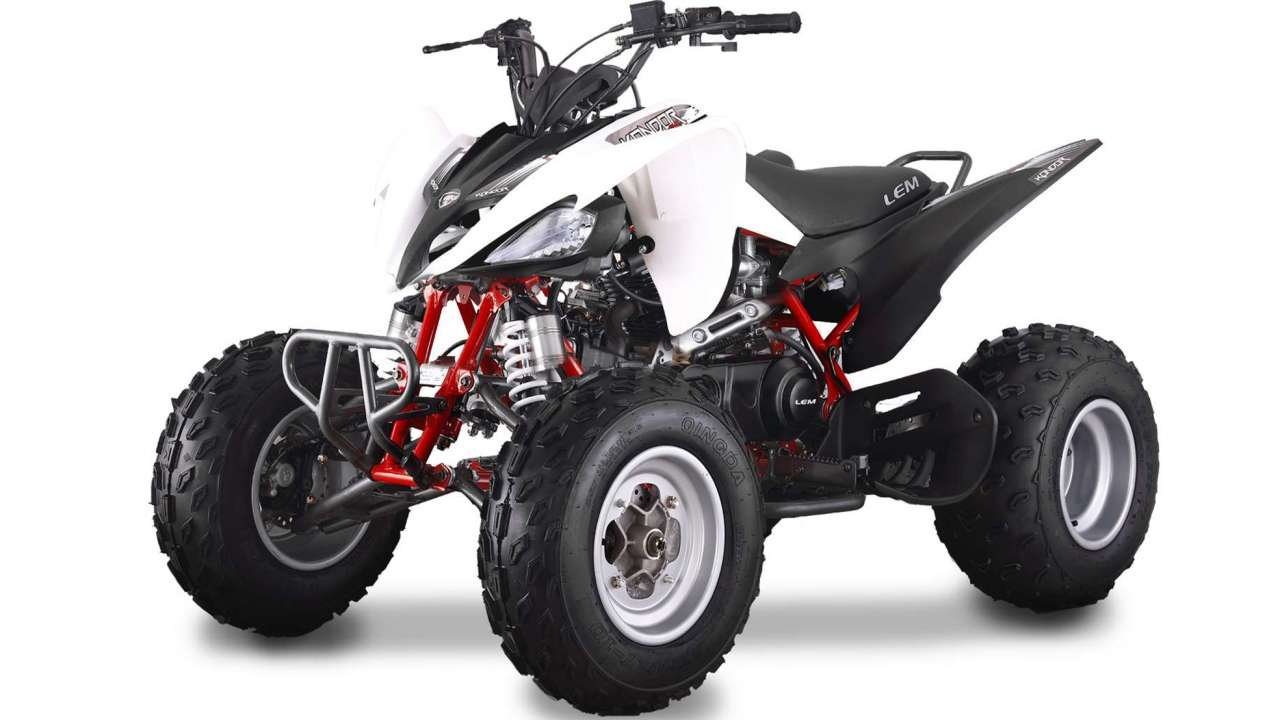

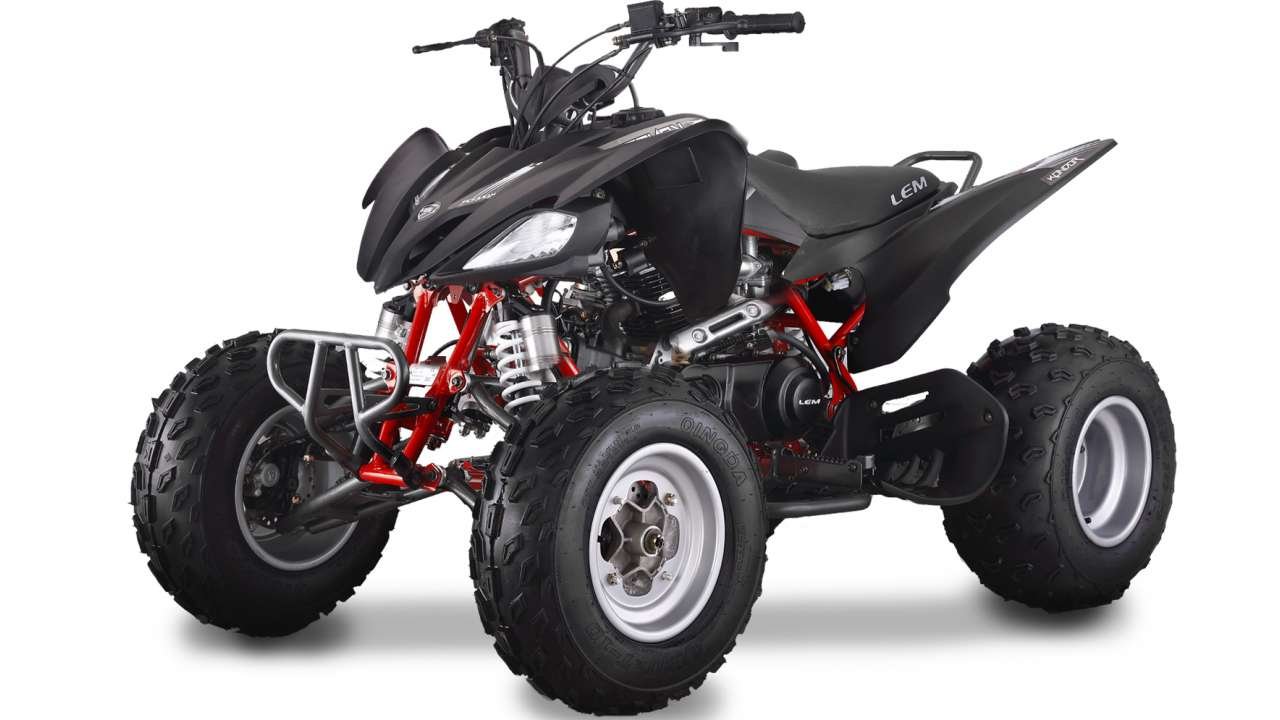

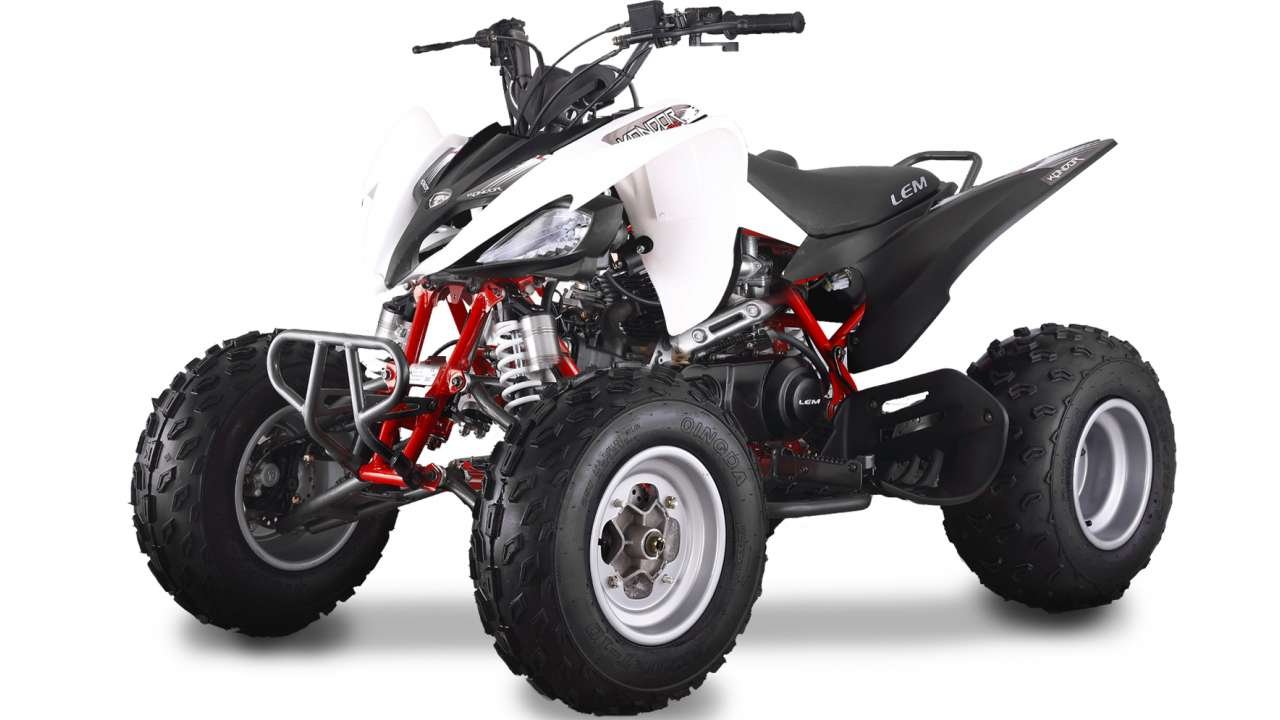

Quad Kondor 250cc

Data sheetEngine and transmissionEngine type LC166FMM Single cylinder, four strokeAir CoolingBor and stroke 65.5x66.2 mmCylinder displacement 223 mlCompression ratio 9:1PZ30 carburettormaximum power 12 HP/7500 rpmmaximum torque 17Nm/6000rpmWet multi-piece clutch + automatic centrifugalTransmission Chain transmissionDimensionsVehicle dimensions (LxWxH)1625x1060x1065mm (64x41.7x41.9 inch)Wheelbase1090mm (42.9in)Seat height790 mm (31.1 in)Ground clearance135mm (5.3in)Turning radius2950 mm (9.7 ft)Box dimensions (LxWxH)1460x880x860 mm (57.4x34.6x33.9 inches)Dry weight149 kg (328.5 lbs)Box gross weight177 kg (390.2 lbs)Fuel capacity9L (2.4gal)Payload capacity100kg (220lbs)Capacity of person 1Chassis suspension brakesFront suspensionMacpherson independent suspensionRear suspension Single Independent SuspensionFront brakes Hydraulic disc brakeRear brakes Hydraulic disc brakeFront tires 20x7-10; 9 PSIRear tires 19x10-9; 9 PSl This vehicle is not approved for road traffic, but must be used exclusively on private spaces or on reserved circuit tracks. Only allow children to ride the motorcycle under adult supervision. All our motorbikes or quads are not toys, but sporting goods. They are built in compliance with CE and ISO9000 standards, are subjected to continuous quality controls.
